XB4D 2024

Dirt 4WD R/C Racing Buggy with Championship DNA

XRAY XB4 2024 1/10 Electric 4WD Competition Buggy Kit. Built on the the success of XB4 2023 4WD buggy with major updates and improvements to keep the XB4 on top of the 4WD buggy racing when it comes to a higher level of performance. Team Xray engineers went to the lab with one goal in mind, take the awesome XB4 2024 to an even higher level of performance on both carpet and dirt surfaces!

Front End:

The 2024 XB4 comes equipped with all updated steering knuckles and caster blocks molded in a medium hardness composite to improve both handling and reliability with four different optional caster blocks with different stiffness levels available allowing racers to tune and adjust the driving characteristics to match almost any track conditions!

Rear End:

The 2024 XB4 features rear suspension arms that were designed to accommodate the multi-adjustable uprights, while the outer pivot of each arm uses small screws to secure the hinge pins, prevent separation and reduce suspension bind. The XB4C includes updated rear uprights with Lower roll center positions to improve stability and support the suspension in high-speed corners on Carpet or Astro, while the XB4D comes with both lower and higher uprights Roll Center positions to tune the rear suspension as the track condition changes!

Chassis:

The updated chassis plate includes multiple rear transmission mounting positions, standard or short positions to fine-tune handling, while the guards were designed with a narrow front profile and chamfered edges to reduce chassis scrub on jump entry, significantly improving consistency and handling over jumps! One of the key improvements is the front and rear gear differential with a height adjustment design that features a split cover and crown gear design with a larger internal oil capacity to increase the consistency of the differentials while keeping them significantly narrow in order to move the rotating weight closer to the centerline!

Shocks:

The all-updated big bore 13.2mm shocks are designed to remarkably boost overall handling, and provide unmatched control and supreme traction to the XB4 2024. Comes with super-efficient pre-oiled X-rings to ensure smooth operation while preventing dust from going inside the shock assembly. In addition, both carpet and dirt versions include two different thickness pistons (2.0 and 2.5mm) that come pre-drilled and blank, allowing racers to further custom and modify the shocks!

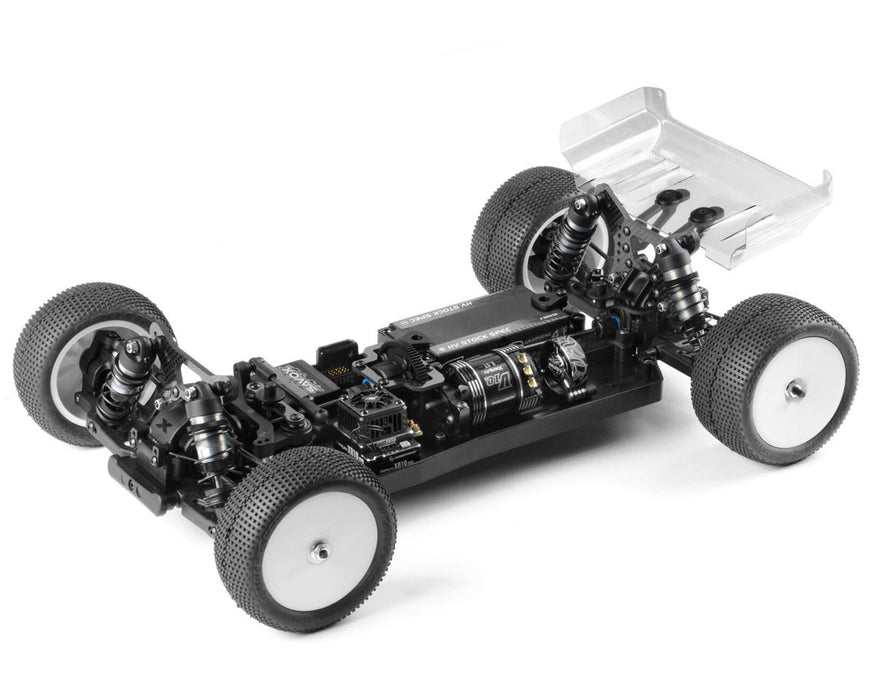

NOTE: Finished kit shown in the photos is for illustrative purposes only. See needed to complete list below for a list of items required to complete the model.

Features:

• Updated Steering Blocks and C-hubs molded from medium composite hardness
• Updated rear uprights feature lowered roll center positions to improve stability and reduce suspension collapse in high speed corners
• All-Updated big bore 13.2mm shock design with 2.0 and 2.5mm pistons included
• Super-efficient pre-oiled X-rings to ensure smooth operation and prevent dust from entering the shocks
• Front shock tower with wider positions increases the set-up adjustment range for different track conditions
• Rear shock tower with lowered mounting positions to improve roll characteristics and increase cornering speed
• Redesigned side guards to reinforce the rear section of the chassis
• Updated rear wing generates more traction, provides better jump stability, and significantly increases lifespan

Specifications:

• Scale: 1/10
• Length: -
• Width: -
• Wheelbase: -
• Drive: 4WD
• Type: Off-Road
• Power Source: Electric
• Input Voltage: 2S (7.4V - 7.6V)
• Assembly Level: Unassembled Kit

Includes:

• (1) XB4D 2024 1/10 Electric 4WD Competition Buggy Kit
• Instruction Manual

Needed to Complete:

• (1) 2-Channel Transmitter/Receiver System
• (1) Low Profile Steering Servo
• (1) 1/10 Scale Motor & ESC
• (1) 7.4V-7.6V 2S LiPo with "shorty" battery dimensions
• (1) Compatible Charger
• Tires & CA Clue
• Polycarbonate paint for body
• Assembly Tools
